PET blow molding machines are essential industrial equipment for producing a wide range of plastic bottles and containers made from Polyethylene Terephthalate (PET). This technology enables the manufacturing of containers in diverse sizes, shapes, and applications, making it a cornerstone of various packaging industries. Utilizing PET blow molding machinery not only enhances production speed and precision but also reduces operational costs and improves overall line productivity. Consequently, these machines are recognized as effective solutions for the development and optimization of plastic product manufacturing. The PET blow molding machines offered are manufactured by MISSP (Kropotkin Plant), a prestigious Russian brand specializing in the design and production of bottling and packaging equipment. With decades of industrial experience, specialized engineering expertise, and the integration of advanced production technologies, MISSP is established as a reliable supplier of PET production lines and liquid packaging solutions.

واردات دستگاه هایواردکننده ماشین آلات MISSP روسیه

PET Blow Molding Machines

	Polyethylene Terephthalate (PET) Bottle Production Lines

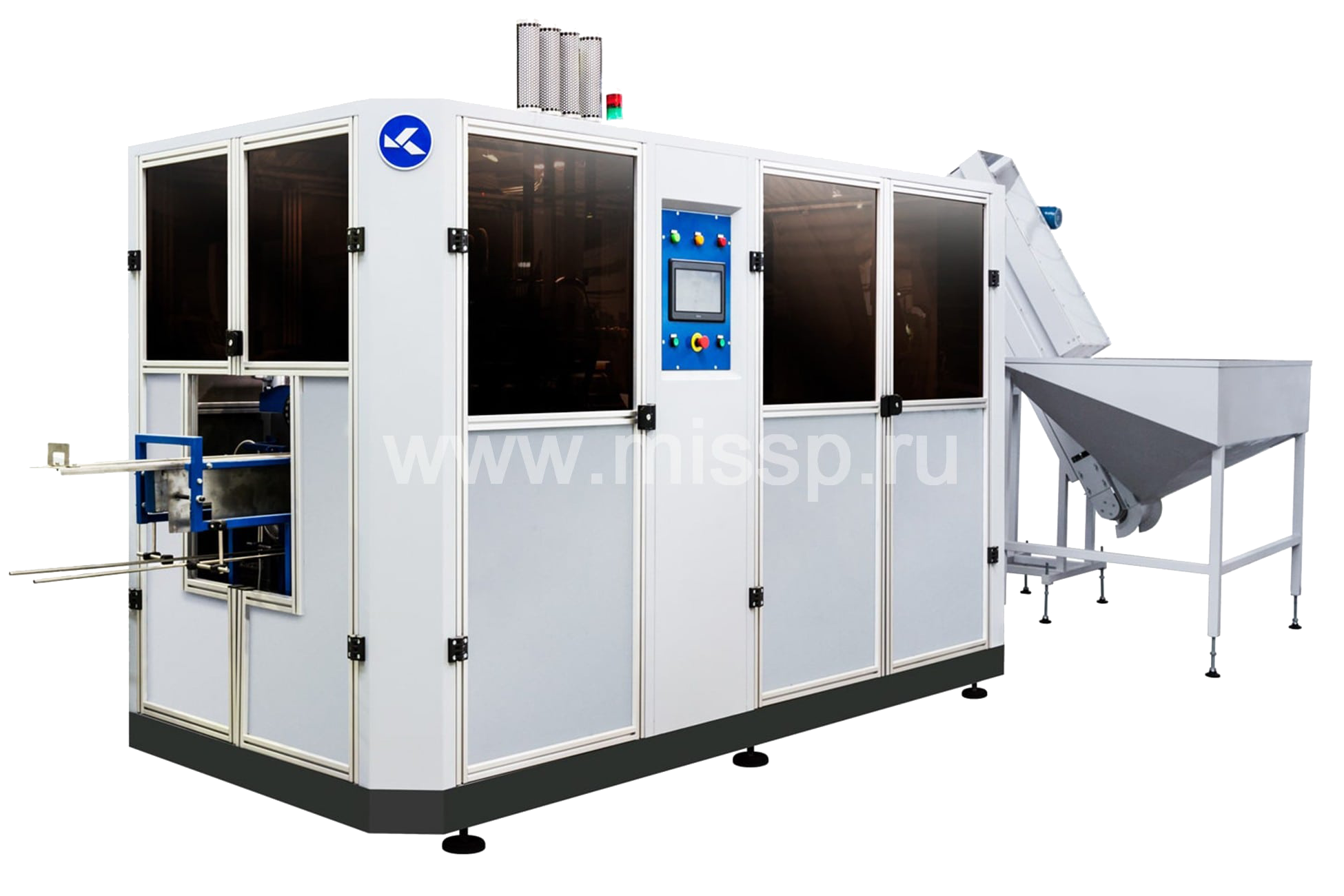

Automatic PET Bottle Blow Molding Machine – Model A-4000-3 \| Product ID: 031 Maximum Productivity, bottles per hour: 4,000 (depends on bottle volume, geometry, weight and application) Container Volume Range: 0.25 to 3 Liters Maximum Bottle Diameter: 105 mm Number of Mold Cavities: 3 Cavities Compatible Preform Types: Lightweight, Shortened, Standard, and Thick-Walled Pre-Blowing Pressure: 1 MPa (10bar) Main Blowing Pressure: 4 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 8.5 Nm³/min Heating Elements / Zones: 21 Pcs / 7 Independent Heating Zones Cooling Water Temp. (Coolant): 6 to 10 °C Coolant Flow Rate: 1 m³/h Coolant Pressure: 0.3 MPa (3 bar) Required Chiller Cooling Capacity: 17 KW Power Consumption: 14.6 KW Supply Voltage: 380 V (3-Phases) Operating Ambient Temp. Range: 0 to +40 °C Machine Dimensions (L × W × H): 5.4 × 2.5 × 2.4 m Machine Weight: 3,500 kg Supported Bottle Cross-Sections: Round, Square, Oval, and Integrated Handle	Description:This fully automatic machine is designed for the production of PET bottles from heated preforms by means of stretching and two-stage blow molding in a three-cavity mold. The equipment enables the production of bottles with capacities ranging from 0.25 to 2.0 liters for filling both carbonated and still liquids. The machine is equipped with pneumatic components from leading international manufacturers such as FESTO and AirCom, as well as an OMRON controller and electronic system. Download Product Details

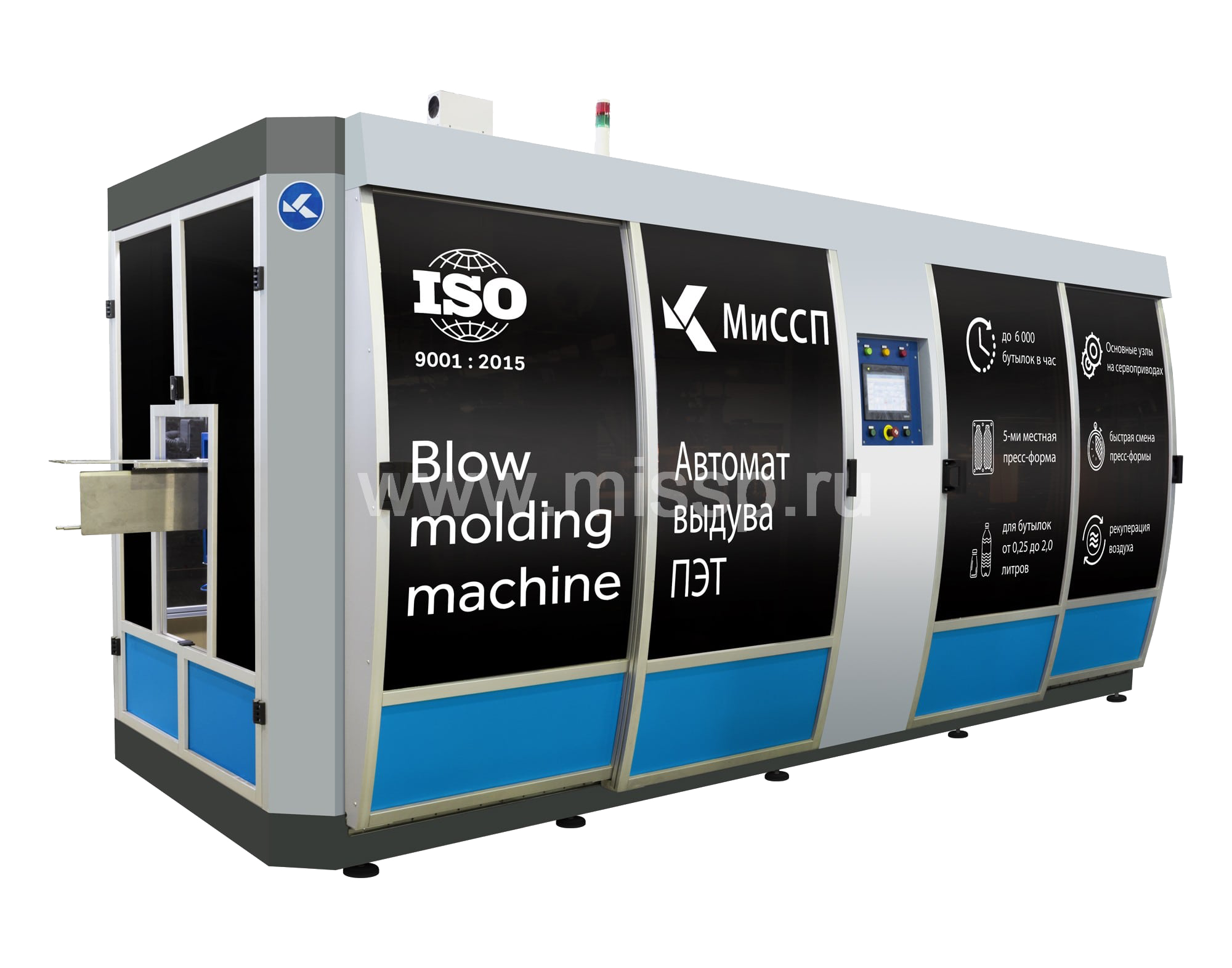

Automatic PET Bottle Blow Molding Machine – Model A-6000-4 \| Product ID: 032 Max. Production Capacity, bottles per hour: 6,000 (depends on bottle volume, geometry, weight and application) Container Volume Range: 0.25 L – 2.0 L Max. Bottle Diameter: 105 mm Number of Mold Cavities: 4 Cavities Pre-blowing Pressure: 1.0 MPa (10 bar) Main Blowing Pressure: 4.0 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 10.28 Nm³/min Heating Elements / Zones: 40 Pcs / 16 Independent Zones Cooling Water Temperature: 6°C – 10°C Cooling Water Flow Rate: 1.5 m³/h Cooling Water Pressure: 0.3 MPa (3 bar) Required Chiller Capacity: 20.8 kW Power Consumption: 33 kW Supply Voltage: 380V (3-Phase) Operating Ambient Temperature: 0°C to +40°C Overall Dimensions (L × W × H): 8.75 × 3.5 × 2.2 m Machine Weight: 4,500 kg Applicable Bottle Shapes: Round, Square, Oval, and Handle Bottles	Description: Automatic machine is designed for the production of PET-bottles from heated preforms by stretching and two-stage blow molding in quadruple mold. The equipment allows to manufacture bottles of 0.25 to 2.0 liters capacity for bottling carbonated and still liquids. The machine is equipped with pneumatic equipment made by leading manufacturers such as "FESTO", "AirCom", and "OMRON" controller and electronics. Download Product Details
Automatic PET Bottle Blow Molding Machine – Model A-8000-5 \| Product ID: 033 Maximum Productivity, bottles per hour: 8,500 (depends on bottle volume, geometry, weight and application) Container Volume Range: 0.25 L – 2.5 L Number of Mold Cavities: 5 Cavities Max. Container Diameter: 105 mm Max. Container Height (with neck): 350 mm Pre-blowing Pressure: 1.0 MPa (10 bar) Main Blowing Pressure: 4.0 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 14.95 Nm³/min Heating Elements / Zones: 64 Pcs / 16 Independent Zones Cooling Water Temperature: 6°C – 10°C Cooling Water Flow Rate: 2.0 m³/h Cooling Water Pressure: 0.3 MPa (3 bar) Required Chiller Capacity: 27.6 kW Power Consumption: 40 kW Supply Voltage: 380V (3-Phase) Operating Ambient Temperature: 0°C to +40°C Overall Dimensions (L × W × H): 8.5 × 3 × 2.2 m Machine Weight: 6,600 kg Supported Preform Types: Lightweight, Shortened, Standard, Thick-Walled	Description: The machine is designed to produce PET bottle from preheated preforms stretched and blown two-steps by means of in quintuple mold. The finished product may vary from 0,25 up to 2,0 in capacity by productivity 8000 BPH. The machine consists of power unit, furnace for heating preforms, preform autoloader, container with control system. The preform autoloader is designed for preform orientation and feed them to heating area. The furnace for heating preforms is designed for uniform heating of preform and positioning in area capture of gripping holder step by step. The power unit is designed for filing preform on mold and provides product blowing out, taking out of ready product from mold and feed them the next technological line. The use of servo-drivers provides uniform rate and intensifying for more quantity traction of preform before blowing out. Specialized valve terminal with self-diagnostic used for the control of air powered drive. The control of level heating bulb by means industrial and specialized module of control. The machine is equipped with pneumatic devices and servo-drivers, controller and electronics by "FESTO" company. Download Product Details
Automatic PET Bottle Blow Molding Machine – Model A-12000-7 \| Product ID: 034 Maximum production capacity, bottles per hour: 12,000 (depends on bottle volume, geometry, weight and application) Container volume range: 0.25 to 2 liters Maximum bottle diameter: 105 mm Maximum bottle height (with neck): 350 mm Number of mold cavities: 7 cavities Pre-blowing pressure: 1 MPa (10 bar) Main blowing pressure: 4 MPa (40 bar) Control system pressure: 0.8 MPa (8 bar) Total compressed air consumption: 18.75 Nm3/min Number of heating elements: 80 pcs in 16 separate zones Coolant temperature: 6 to 10 C Coolant flow rate: 2.5 m3/h Coolant pressure: 0.3 MPa (3 bar) Required chiller capacity: 4.41 kW Power consumption: 57 kW Supply voltage: 380 V (three-phase) Permitted operating ambient temperature: 0 to +40 C Machine dimensions (L x W x H): 9.4 x 3.5 x 2.2 m Machine weight: 8,000 kg Compatible preform types: Lightweight, short, standard, thick-walled	Description: 3D model of Automatic PET blow molding machine A-12000-7, The machine is designed to produce PET bottle from preheated preforms stretched and blown two-steps by means of in seven-seat mold. The finished product may vary from 0,25 up to 2,0 in capacity by productivity 12000 BPH. The machine consists of power unit, furnace for heating preforms, preform autoloader, container with control system. The preform autoloader is designed for preform orientation and feed them to heating area. The furnace for heating preforms is designed for uniform heating of preform and positioning in area capture of gripping holder step by step. The power unit is designed for filing preform on mold and provides product blowing out, taking out of ready product from mold and feed them the next technological line. The use of servo-drivers provides uniform rate and intensifying for more quantity traction of preform before blowing out. Specialized valve terminal with self-diagnostic used for the control of air powered drive. The control of level heating bulb by means industrial and specialized module of control. The machine is equipped with pneumatic devices and servo-drivers, controller and electronics by "FESTO" company. Download Product Details

PET Blow Molding Machines
Product ID: 031 Automatic Bottle Blow Molding Machine – Model A-4000-3 Description:This fully automatic machine is designed for the production of PET bottles from heated preforms by means of stretching and two-stage blow molding in a three-cavity mold. The equipment enables the production of bottles with capacities ranging from 0.25 to 2.0 liters for filling both carbonated and still liquids. The machine is equipped with pneumatic components from leading international manufacturers such as FESTO and AirCom, as well as an OMRON controller and electronic system. Download Product Details Maximum Productivity, bottles per hour: 4,000 Container Volume Range: 0.25 to 3 Liters Maximum Bottle Diameter: 105 mm Number of Mold Cavities: 3 Cavities Compatible Preform: Lightweight, Shortened, Thick-Walled Pre-Blowing Pressure: 1 MPa (10bar) Main Blowing Pressure: 4 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 8.5 Nm³/min Heating Elements/Zones: 21 Pcs/7 Independent Heating Zones Cooling Water Temp. (Coolant): 6 to 10 °C Coolant Flow Rate: 1 m³/h Coolant Pressure: 0.3 MPa (3 bar) Required Chiller Cooling Capacity: 17 KW Power Consumption: 14.6 KW Supply Voltage: 380 V (3-Phases) Operating Ambient Temp. Range: 0 to +40 °C Machine Dimensions (L × W × H): 5.4 × 2.5 × 2.4 m Machine Weight: 3,500 kg Bottle Cross-Sections: Round, Square, Oval, Integrated Handle
Product ID: 032 Automatic Bottle Blow Molding Machine – Model A-6000-4 Description: Automatic machine is designed for the production of PET-bottles from heated preforms by stretching and two-stage blow molding in quadruple mold. The equipment allows to manufacture bottles of 0.25 to 2.0 liters capacity for bottling carbonated and still liquids. The machine is equipped with pneumatic equipment made by leading manufacturers such as "FESTO", "AirCom", and "OMRON" controller and electronics. Download Product Details Max.Production Capacity, bottles per hour: 6,000 Container Volume Range: 0.25 L – 2.0 L Max.Bottle Diameter: 105 mm Number of Mold Cavities: 4 Cavities Pre-blowing Pressure: 1.0 MPa (10 bar) Main Blowing Pressure: 4.0 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 10.28 Nm³/min Heating Elements / Zones: 40 Pcs / 16 Independent Zones Cooling Water Temperature: 6°C – 10°C Cooling Water Flow Rate: 1.5 m³/h Cooling Water Pressure: 0.3 MPa (3 bar) Required Chiller Capacity: 20.8 kW Power Consumption: 33 kW Supply Voltage: 380V (3-Phase) Operating Ambient Temperature: 0°C to +40°C Overall Dimensions (L × W × H): 8.75 × 3.5 × 2.2 m Machine Weight: 4,500 kg Applicable Bottle Shapes:Round,Square,Oval,Handle Bottles
Product ID: 033 Automatic Bottle Blow Molding Machine – Model A-8000-5 Description: The machine is designed to produce PET bottle from preheated preforms stretched and blown two-steps by means of in quintuple mold. The finished product may vary from 0,25 up to 2,0 in capacity by productivity 8000 BPH. The machine consists of power unit, furnace for heating preforms, preform autoloader, container with control system. The preform autoloader is designed for preform orientation and feed them to heating area. The furnace for heating preforms is designed for uniform heating of preform and positioning in area capture of gripping holder step by step. The power unit is designed for filing preform on mold and provides product blowing out, taking out of ready product from mold and feed them the next technological line. The use of servo-drivers provides uniform rate and intensifying for more quantity traction of preform before blowing out. Specialized valve terminal with self-diagnostic used for the control of air powered drive. The control of level heating bulb by means industrial and specialized module of control. The machine is equipped with pneumatic devices and servo-drivers, controller and electronics by "FESTO" company. Download Product Details Maximum Productivity, bottles per hour: 8,500 Container Volume Range: 0.25 L – 2.5 L Number of Mold Cavities: 5 Cavities Max. Container Diameter: 105 mm Max. Container Height (with neck): 350 mm Pre-blowing Pressure: 1.0 MPa (10 bar) Main Blowing Pressure: 4.0 MPa (40 bar) Control System Pressure: 0.8 MPa (8 bar) Total Compressed Air Consumption: 14.95 Nm³/min Heating Elements / Zones: 64 Pcs / 16 Independent Zones Cooling Water Temperature: 6°C – 10°C Cooling Water Flow Rate: 2.0 m³/h Cooling Water Pressure: 0.3 MPa (3 bar) Required Chiller Capacity: 27.6 kW Power Consumption: 40 kW Supply Voltage: 380V (3-Phase) Operating Ambient Temperature: 0°C to +40°C Overall Dimensions (L × W × H): 8.5 × 3 × 2.2 m Machine Weight: 6,600 kg Preform Types: Lightweight, Shortened, Thick-Walled
Product ID: 034 Automatic Bottle Blow Molding Machine – Model A-12000-7 Description: 3D model of Automatic PET blow molding machine A-12000-7, The machine is designed to produce PET bottle from preheated preforms stretched and blown two-steps by means of in seven-seat mold. The finished product may vary from 0,25 up to 2,0 in capacity by productivity 12000 BPH. The machine consists of power unit, furnace for heating preforms, preform autoloader, container with control system. The preform autoloader is designed for preform orientation and feed them to heating area. The furnace for heating preforms is designed for uniform heating of preform and positioning in area capture of gripping holder step by step. The power unit is designed for filing preform on mold and provides product blowing out, taking out of ready product from mold and feed them the next technological line. The use of servo-drivers provides uniform rate and intensifying for more quantity traction of preform before blowing out. Specialized valve terminal with self-diagnostic used for the control of air powered drive. The control of level heating bulb by means industrial and specialized module of control. The machine is equipped with pneumatic devices and servo-drivers, controller and electronics by "FESTO" company. Download Product Details Maximum production capacity, bottles per hour: 12,000 Container volume range: 0.25 to 2 liters Maximum bottle diameter: 105 mm Maximum bottle height (with neck): 350 mm Number of mold cavities: 7 cavities Pre-blowing pressure: 1 MPa (10 bar) Main blowing pressure: 4 MPa (40 bar) Control system pressure: 0.8 MPa (8 bar) Total compressed air consumption: 18.75 Nm3/min Number of heating elements: 80 pcs in 16 separate zones Coolant temperature: 6 to 10 C Coolant flow rate: 2.5 m3/h Coolant pressure: 0.3 MPa (3 bar) Required chiller capacity: 4.41 kW Power consumption: 57 kW Supply voltage: 380 V (three-phase) Permitted operating ambient temperature: 0 to +40 C Machine dimensions (L x W x H): 9.4 x 3.5 x 2.2 m Machine weight: 8,000 kg Compatible preform types: Lightweight, short, standard, thick-walled
